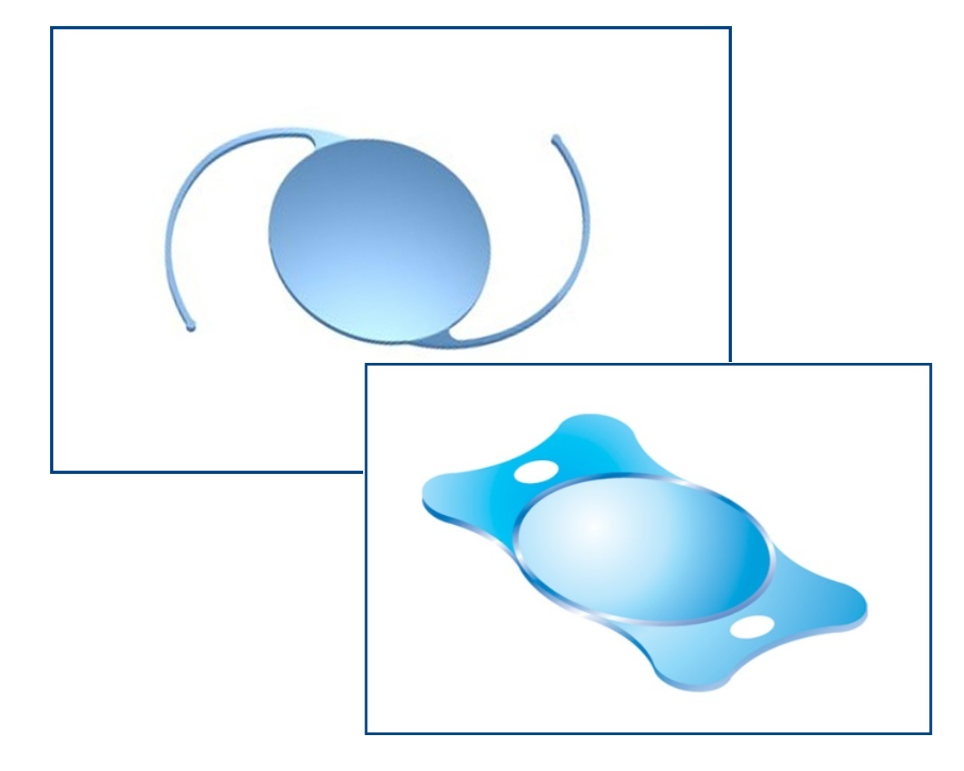

Axiopt provide wide range of IOLs as:
1.Multi focal lenses
2.Hydrophilic lenses
3.Hydrophobic lenses
4.PMMA lenses
Axiopt IOLs feature:
1.Excellent folding & unfolding
2.IOL remains Glitter-free
3.Enhanced contrast sensitivity, sharpness and clarity in all lighting conditions
4.Improves Scotopic Vision
| Axiopt | Multifocal | Hydrophilic | Hydrophobic | PMMA |
| Optical Style | Bi-convex | Bi-convex | Bi-convex | Equiconvex/Bi-convex |
| Optic Size | 6.0mm | 6.0mm | 6.0mm | 6.0mm |
| Diametral | 12.50mm | 12.50mm | 12.50mm | 12.50mm |
| A-Constant | 118.2 | 118.2 | 119.0 | 115.1 |
| Diopters | +15 to +25 | +10 to +30 | +10 to +30 | +10 to +30 |

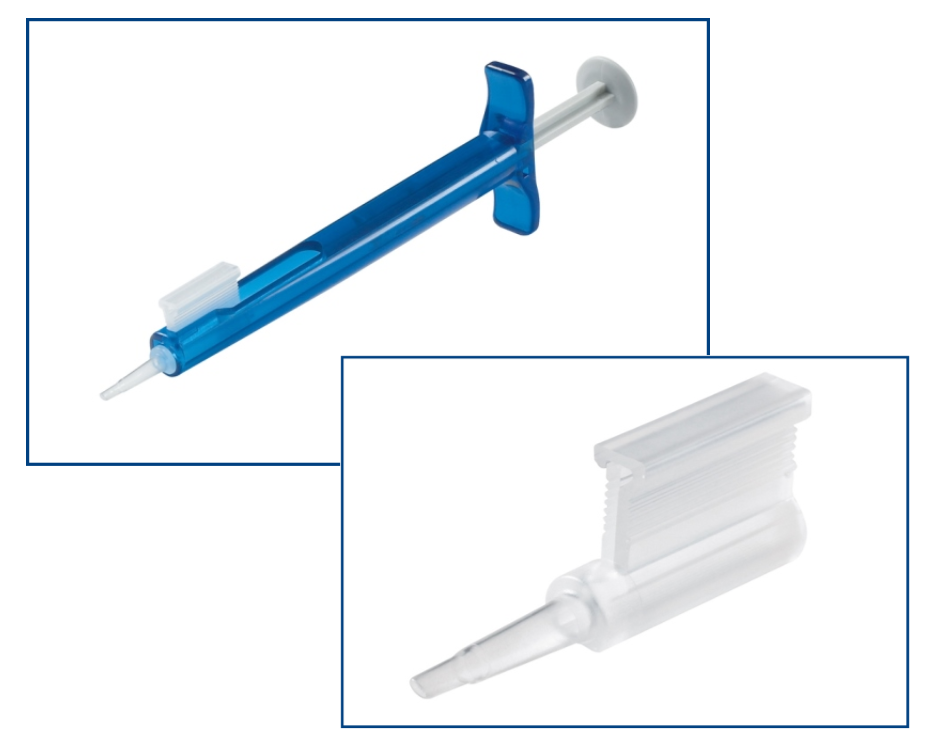

Axijet IOL delivery system include one injector and cartridge set for smooth insertion of IOL in to the eyes.
Axijet Delivery system features:
1.No risk of any infection.
2.Small incision can be used for higher diapter lens.
3.Faster recovery as incision is small.
| Availabble Model |
Cartridge | Injector |
| Axijet1.5 | OD1.5 | silicon size:1.8 |
| Used for up to 30Diapter | Any cartridge can be used | |
| Axijet2.2 | OD2.2 | silicon size:2.4 |
| used for up to 40Diapter | Any cartridge can be used | |
| Axijet2.4 | OD2.4 | silicon size:2.6 |
| used for more than 40Diapter | Any cartridge can be used |

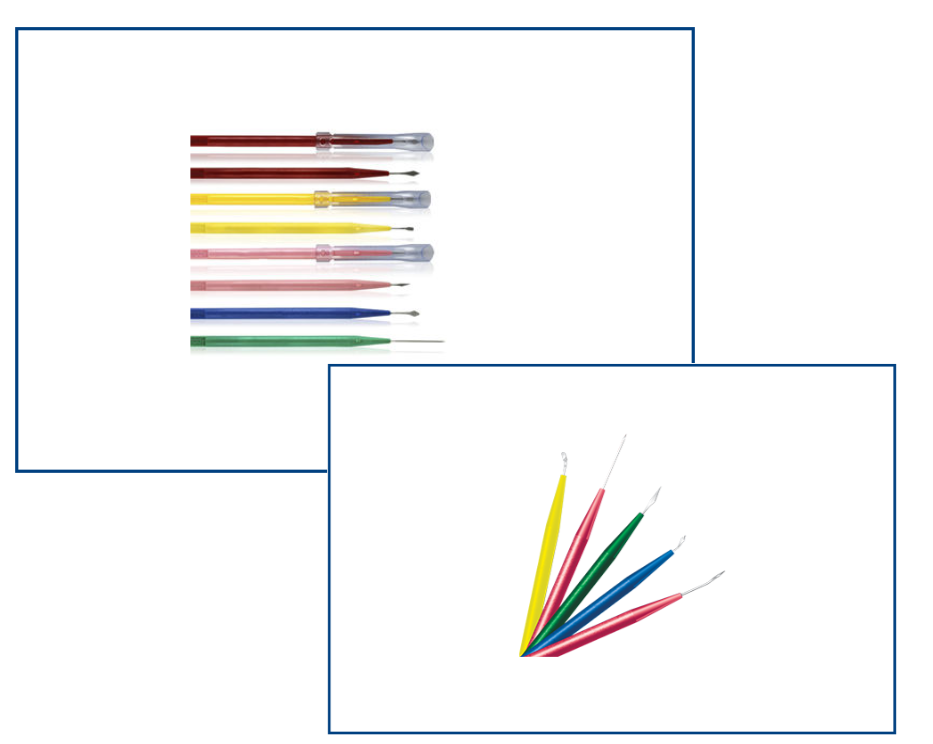

Axiedged knives available in wide range of sizes and shapes in two variant
Gaurded axiedged knives
Non-Gaurded axiedged knives
Axiedge ophthalmic knives feature:
1.Anti Microbial
2.Matt finished & Highly hydro phobic
3.Micro-precision, ultra-sharp blade edges
4.Up to 100 cuts without losing sharpness
5.Highly bio compitible
| Lance tip | Keratom | Cresent | MVR | Implant | |||||||||
| straight | Angled | Straight | Angled | Straight | Angled |
Straight |
Angled | ||||||
| 15^o | 1.6mm | 1.6mm | 2.0mm | 2.0mm | 19G(1.5mm) | 2.8mm | |||||||
| 22.5^o | 1.8mm | 1.8mm | 2.3mm | 2.3mm | 20G(1.2mm) | 3.2mm | |||||||
| 30^o | 2.0mm | 2.0mm | 2.5mm | 2.5mm | 23G(0.9mm) | 3.6mm | |||||||
| 45^o | 2.2mm | 2.2mm | 25G(0.55mm) | 3.8mm | |||||||||
| 2.4mm | 2.4mm | 4.2mm | |||||||||||
| 2.6mm | 2.6mm | 5.2mm | |||||||||||
| 2.8mm | 2.8mm | 5.5mm | |||||||||||
| 3.0mm | 3.0mm | ||||||||||||
| 3.2mm | 3.2mm | ||||||||||||

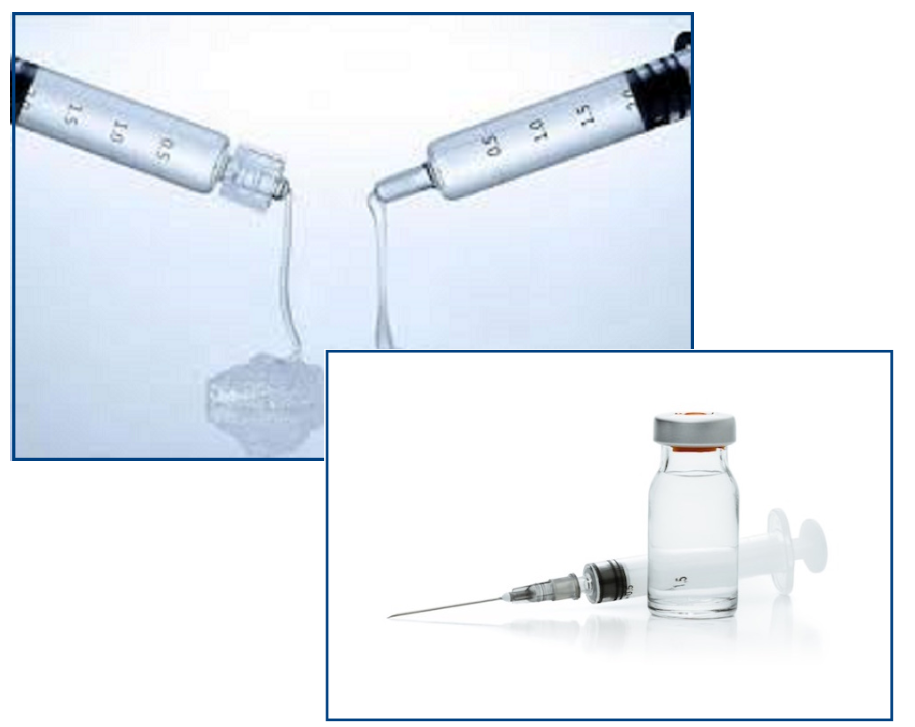

Axivisc is viscoelastic solution range is composed from:
1.6%sodiumhyaluronate
1.8%sodiumhyaluronate
2.0%hydroxypropyl methylcellulose
Axivisc viscoelastic solutions:
1.provide excellent bio-compatibility
2.assure maximum protection for the endothelium
3.maintenance of volume in the anterior chamber
4.Quick and easy removal
| Axivisc | 2.0%hydroxypropyl methylcellulose | 1.6%sodiumhyaluronate | 1.8%sodiumhyaluronate |
| Specification | 2.0% hydroxypropyl methylcellulose pH 6.8 - 7.5 |
1.6% sodium hyaluronate pH 6.8 - 7.4 |
1.8% sodium hyaluronate pH 6.8 - 7.4 |
| Molecular Weight | 1.2 - 2.0 mill. Daltons | 1.2 - 2.0 mill. Daltons | |
| Viscosity | approx. 4 000 - 5 000 mPas | approx. 60 000 mPas | approx. 100 000 mPas |
| Osmolality | 270 - 400 mOsm/kg | 270 - 400 mOsm/kg | 270 - 400 mOsm/kg |
| Storage | room temperature | 2C - 25 C | 2 C - 25 C |
| Shelf Life | 5 yrs | 2.5 yrs | 2.5 yrs |
| Volume (Syringe) | 2 ml | 1 ml | 1 ml |
| Volume (tube bottle) | 5 ml |
